| FEATURES: |
| - Grip (expander) rings have been designed and produced to exacting tolerances |
| - Our grip rings are exceptionally strong; made of fiber-reinforced polycarbonate, allowing the rings to better maintain their circular shape |
| - Dimple marks located on one side of both inner and outer rings provide quick and easy confirmation of correct orientation of grip ring positioning |
| - Low cost and engineered to last |
| - Available in USI blue and white |
| *** REQUEST FURTHER DETAILED INFORMATION |
Part # |
Wafer Size |

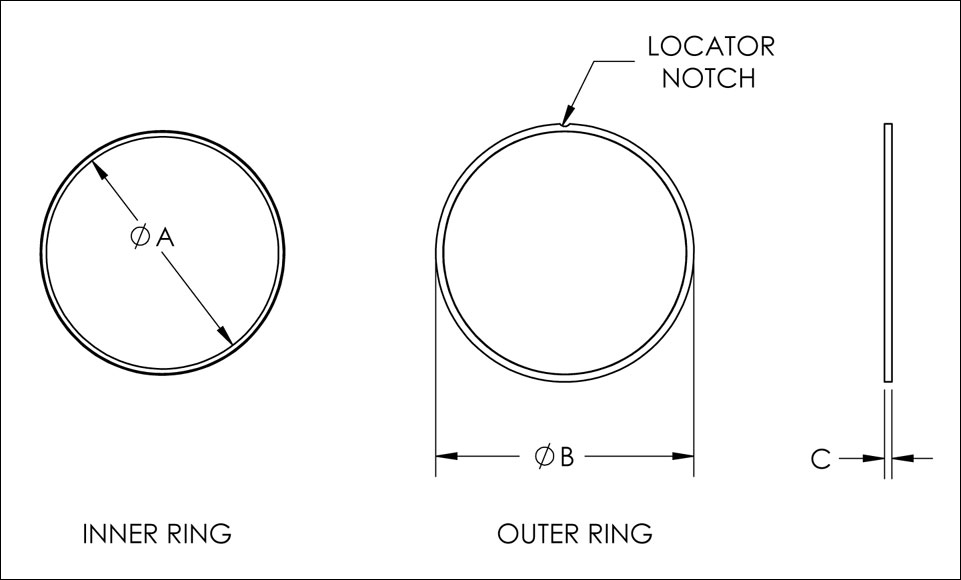

Inner Ring I.D. 'A' |
Outer Ring O.D. 'B' |
Ring Thickness 'C' |
Ring Colors O.R./I.R. |
UGR-6
|
6.0" (150 mm)
|
7.20" (182.9 mm) |
7.99" (202.9 mm) |
.23" (5.8 mm) |
Blue/White |
UGR-8
|
8.0" (200 mm) |
8.95" (227.3 mm) |
9.77" (248.2 mm) |
.30" (7.6 mm) |
Blue/White |
UGR-12
|
12.0" (300 mm) |
13.16" (334.3 mm) |
14.22" (361.2 mm) |
.32" (8.1 mm) |
Blue/White |
| FEATURES: |
| - Static-dissipative (Antistatic) |
| - Each size shipper will accommodate same size grip ring OR film frame ~ No more need to buy grip ring shippers and different film frame shippers |
| - Smoke-color to minimize UV light exposure to wafer |
| - Extremely durable and long lasting |
| - Three sizes available |
| *** REQUEST FURTHER DETAILED INFORMATION |
| Part # | Length |
Width 'B' |
Closed 'C' |
Weight |
USI Grip Ring |
Other Grip Ring Manufacturers |
USI Film Frame |
Other Film Frame Manufacturers |
| UGFS-6 |
10.50" 266.7 mm |
9.95" 252.7 mm |
0.72" 18.3 mm |
7.2 oz | UGR-6 |
GRP 2620-5 GRP 2620-4 |
UFF-6 |
FF 070/075/080 DTF 2-6-1 |
| UGFS-8 |
12.75" 323.9 mm |
12.30" 312.4 mm |
0.81" 20.6 mm |
8.7 oz | UGR-8 |
GRP 2620-8 | UFF-8 |
FF 105/108 350-104 DTF 2-8-1 |
| UGFS-12 |
17.3" 439.4 mm |
16.45" 417.8 mm |
0.76" 19.3 mm |
14.1 oz | UGR-12 UGR-8 |
UFF-12 |
FF 123 DTF 2-12-1 |
ULTRON SYSTEMS, INC.
Semiconductor Assembly Equipment & Processing Materials
Copyright © 2005-2019 ULTRON SYSTEMS, INC. All Rights Reserved.
ULTRON SYSTEMS, INC. * 5105 Maureen Lane * Moorpark, CA 93021 * (805) 529-1485 * e-mail
| FILM FRAME | A | B | C | D | E |
| UFF-6 | ø 7.638" (194.0 mm) |
8.346" (212.0 mm) |
3.445" (87.5 mm) |
5.000" (127.0 mm) |
.047" (1.1 mm) |
| UFF-8 | ø 9.842" (250.0 mm) |
10.866" (276.0 mm) |
4.803" (122.0 mm) |
5.000" (127.0 mm) |
.047" (1.1 mm) |
| UFF-12 | ø 13.780" (350.0 mm) |
14.956" (379.9 mm) |
6.709" (170.4 mm) |
7.084" (180.0 mm) |
.059" (1.5 mm) |
| FEATURES: |
| - Accommodates a wide range of wafers |
| - Minimizes product damage and handling |
| - Registration notches facilitate accurate, quick, and consistent engagement |
| *** REQUEST FURTHER DETAILED INFORMATION |
| FEATURES: |
| - Makes grip ring separation a "snap" |
| - Extremely durable and long lasting |
| - Works on many non-USI grip rings |
| - Low cost |
| *** REQUEST FURTHER DETAILED INFORMATION |
| FEATURES: |
| - Holds up to 10 grip rings |
| - Available in 3 sizes to accommodate Ultron Systems' 6", 8", and 12" grip rings |
| - High value-to-price ratio |
| - AVAILABLE NOW |
| *** REQUEST FURTHER DETAILED INFORMATION |
| Part # | Magazine Size 'A' (Width) |
Magazine Size 'B' (Depth) |
Magazine Size w/ Cover 'A' (Width) |
Magazine Size w/ Cover 'B' (Depth) |
| UGRM-6 | 8.50" (215.9 mm) | 8.40" (213.4 mm) | 8.74" (222.0 mm) | 8.54" (216.9 mm) |
| UGRM-8 | 10.30" (261.6 mm) | 10.20" (259.1 mm) | 10.54" (267.7 mm) | 10.34" (262.6 mm) |
| UGRM-12 | 14.70" (373.4 mm) | 14.60" (370.8 mm) | 14.94" (379.5 mm) | 14.74" (374.4 mm) |
