Model UH102 Series: (UH102-8, UH102-12)
UVCuring_UH102
UH102 open
Ultron Systems' Models UH102-8 and UH102-12 UV Curing Systems offer inexpensive solutions for the curing of UV films in easy-to-use benchtop packages, without sacrificing control or versatility.

FEATURES:
- Self-contained, bench-top model
- Nitrogen purge to assure complete curing of UV adhesive
- Easily programmable, microprocessor-based controller
- Lamp intensity measurement port
- Serpentine-style grid lamp for even, consistent UV exposure
- Ideal for low to mid-volume production and R&D applications
- Accommodates up to 8" (200mm) wafers on film frames or grip rings (UH102-8); up to 12" (300mm) wafer capability (UH102-12)
- Exhaust hook-up

OPTIONS:
- Film Frame Adapter up to 8" wafer size (UH102-8); up to 12" wafer size (UH102-12)
- Ring Adapter up to 8" wafer size (UH102-8); up to 12" wafer size (UH102-12)
- UV Lamp Intensity Radiometer (requires Sensor/Attenuator Assembly, below)
- Sensor/Attenuator Assembly (requires Radiometer, above)
- 'CE' Mark
*** REQUEST FURTHER DETAILED INFORMATION
UVCuring_UH104
UVCuring_UH102_Open

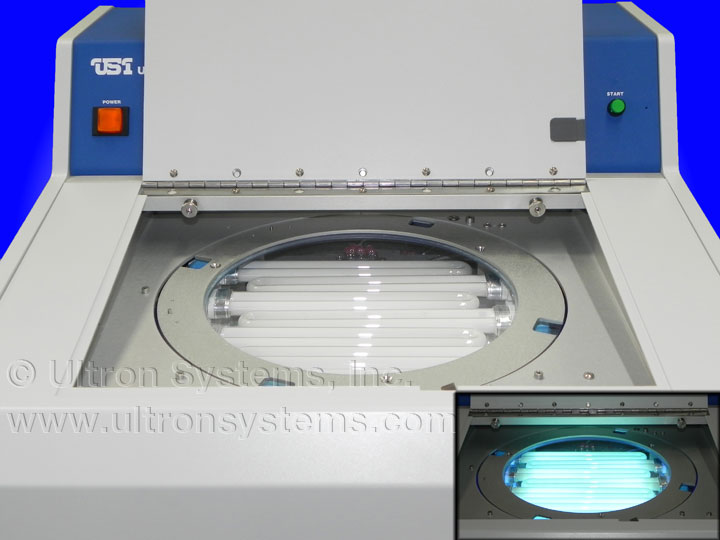

The Model UH104 Series UV Curing Systems are the most cost-effective UV tape exposure solutions on the market. Despite their low cost, these units offer the same uniformity of UV exposure and fast UV curing times as other semiautomatic and automatic high-end UV curing systems. In addition, the Models UH104-8 and UH104-12 feature a new environmentally safe, ozone-free UV lamp array with a cool, low-temperature UV-A 365nm curing process.


FEATURES:
- Compact, desktop profile accommodates up to 8" (200mm) grip ring or film frame-mounted wafer on UH104-8; up to 12" (300mm) on Model UH104-12; rectangular substrates up to 12.3" square on the Model UH104-12W.
- Environmentally safe, ozone-free UV lamp
- Fast curing time
- Easily programmable microprocessor-based controller
- Repeatable, reliable, single-frame, manual operation
- Exceptional cost/performance value
- Cool, low temperature UVA 365nm curing process
- Highly energy-efficient
- Quartz-glass window
- Lamp intensity measurement port

OPTIONS:
- Motorized, rotating workstage
- 6" Film Frame Adapter
- 8" Film Frame Adapter
- UV Lamp Intensity Radiometer (requires Sensor/Attenuator Assembly, below)
- Sensor/Attenuator Assembly (requires Radiometer, above)
- 'CE' Mark
*** REQUEST FURTHER DETAILED INFORMATION























Model UH104 Series: (UH104-8, UH104-12, UH104-12W)
PRODUCTS:
UV CURING SYSTEMS

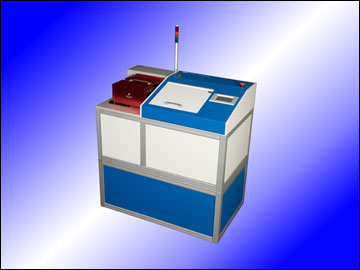

FEATURES UH102 SERIES UH104 SERIES UH105 SERIES UH204 SERIES
- Manual operation, repeatable, reliable, single-frame
X
X
X
OPTION
- Automatic operation, repeatable, reliable, single-cassette
X
- Up to 6" (150mm) film frame and wafer capability
X
OPTION
X
X
- Up to 8" (200mm) film frame and wafer capability
X
X
X
X
- Up to 12" (300mm) film frame and wafer capability
X
X
- LED curing lamps for even higher efficiency and instant start-up
X

- Rectangular substrate curing capability
X
X
- Fast curing time
X
X
X
X
- Easily programmable, microprocessor-based controller
X
X
X
X
- Quartz-glass window
X
X
X
- Lamp intensity measurement port
X
X
X
X
- Self-contained, bench-top model
X
X
X
- Ideal for low to mid-volume production and R&D applications
X
X
X
- Ideal for low, mid, and high-volume production and R&D applications
X
X
X
X
- Serpentine-style grid lamp for even, consistent UV exposure
X
- Nitrogen purge to assure complete curing of UV adhesive
X
- Exhaust hook-up
X
- Film Frame Adapters: 3"-4", 6", 8"
OPTION
OPTION
- Ring Adapters: 6", 6.5", 7", 8"
OPTION
- Environmentally safe, ozone-free lamp
X
X
X
- Cool, low temperature UVA 365nm curing process
X
X
X
- Highly energy-efficient
X
X
X
- Rotating motorized workstage
OPTION
- Conveyor belt workstage with intelligent rapid advance and eject
X

- Film Frame Step-down Adapter - 6", 8"
OPTION
- Auto-scan feature senses presence/absence of film frame in magazine carrier
X
- Conversion Kit for Additional Frame Sizes (requires Same-Manufacturer Film Frame Magazine)
OPTION
- Adapter for Single Feed Manual Operation
OPTION
- UV Lamp Intensity Radiometer & Sensor/Attenuator Assembly
OPTION
OPTION
OPTION
OPTION
- CE Mark
OPTION
OPTION
OPTION
OPTION
The Model UH105 Series LED UV Curing System is our newest product for highly efficient and cost-effective wafer curing. LED light-curing technology offers significant benefits over conventional lamp-based UV curing systems including lower operating costs and instant startup for on-demand curing. The Model UH105 Series offers the same uniformity of UV exposure and fast curing times as other semiautomatic and automatic high-end UV curing systems and generates a cool, low-temperature UV-A 365nm curing process while eliminating both ozone and mercury safety risks. A fast conveyor system advances the wafer (and subsequently ejects it upon completion) while slowing to -- and maintaining -- desired speed programmed for optimal curing.

FEATURES:
- Compact, desktop profile accommodates up to 8" (200mm) grip ring or film frame-mounted wafer, and rectangular substrates up to 8"(w) x 12"(l).
- LED UV lamp array that is ozone-free and environmentally safe
- Instant startup for on-demand curing
- Fast conveyor system advances and ejects substrate before and after curing
- Significant operational cost savings compared to conventional systems including extremely long lifetime with lower lamp replacement and practically zero downtime
- Very stable lamp intensity for consistent processing
- Adjustable exposure time with easily programmable microprocessor-based controller
- Repeatable, reliable, single-frame, semiautomatic operation
- Exceptional cost/performance value
- Cool, low temperature UVA 365nm curing process
- Highly energy-efficient
- Lamp intensity measurement port

DOWNLOAD MODEL UH-105 SERIES DATA SHEET


*** REQUEST FURTHER DETAILED INFORMATION
Model UH105 Series:
